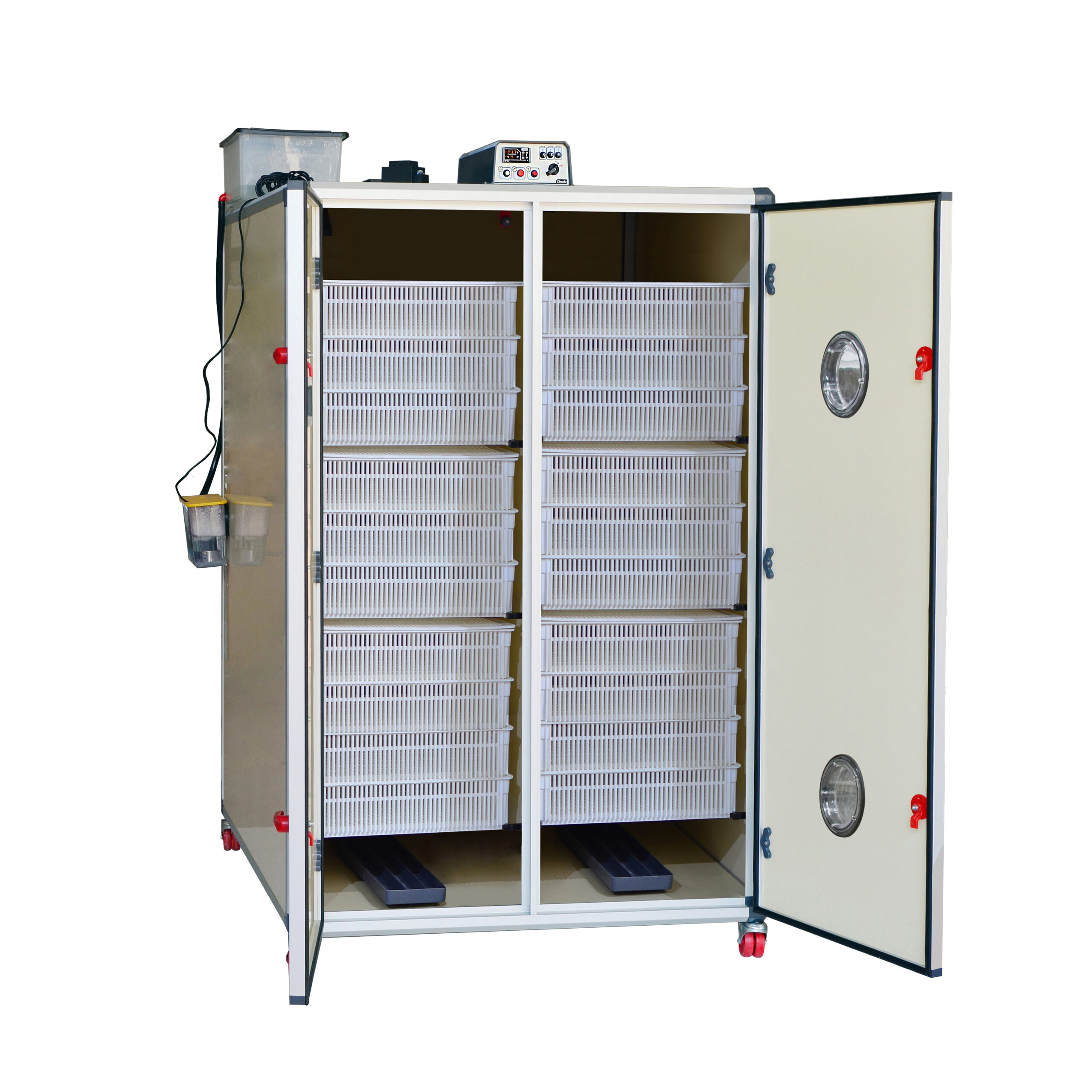

T4800 H – Egg Incubator Hatcher
T4800 H – Egg Incubator Hatcher is used the last 3 days of incubation. Our model with the capacity of 4800 chicken eggs, can also be used for other types of poultry thanks to the TR series tray types. The fully automatic model is equipped with a fan cooling system against the temperature rise.
Incubator Egg Capacity:
| Hen | Turkey-Duck | Quail | Partridge | Pheasant | Goose-Peacock | Ostrick | |
| TOTAL | 4800 | 3780 | 12480 | 9240 | 6480 | 2400 | 180 |
| Setter | – | – | – | – | – | – | – |
| Hatcher | 4800 | 3780 | 12480 | 9240 | 6480 | 2400 | 180 |
Usage:
• Egg Incubator Setter
• Used in the last 3 days of incubation.
Cabin:
• Double walled, high isolation, sandwich panel
• Double door design, 2nd door for back cleaning and service
• Eloxal aluminium cabin profiles
• Lockable double wheel for easy movement
Ventilation:
• AirrouteTM ventilation technologie,
• Adjustable ventilation valves
Heating:
• Automatic digital temperature control,
• Digital display
• Stainless heater
Cooling:
• Automatic cooling control,
• Fan cooling system
Humidity:
• HumisonicTM full automatic humidity system
• Digital humidity display
• Humidity tray with rack
• 20 lt water tank
• Automatic water intake from the water tank for humidification
• Control panel independent detachable humidifier module
Setter:
• 60 pieces of CS80Y hatcher basket
• Hatcher lids for prevending chicks exit
• Elevated hatch section from the ground for ideal air distribution
Alarm:
• High – low temperature alarm
• High low humidity alarm
• Sensor alarm
Security:
• High voltage protection for controllers and actuators
• Fuse protection on all systems
• Sensorless operating mode
Working voltage / Energy consumption:
• 230VAC 50Hz | typical: W | maximum: W
